High Isolation 1064nm In Line Fiber Optic Polarizer Polarization Maintaining Components

Brand Name : GEZHI or OEM

Model Number : Fiber Optic Polarizer

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : gotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Warranty Time : 3 years

Fiber-Type : PM Fiber

Package : Steel tube

Wavelength : 1064nm

Connector : Customized

Contact Now

High Isolation 1064nm Mini In-line Size Fiber Optic Polarizer PM Fiber Out

Product Description

1064nm Mini Size In-line Polarizer
The In-line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.

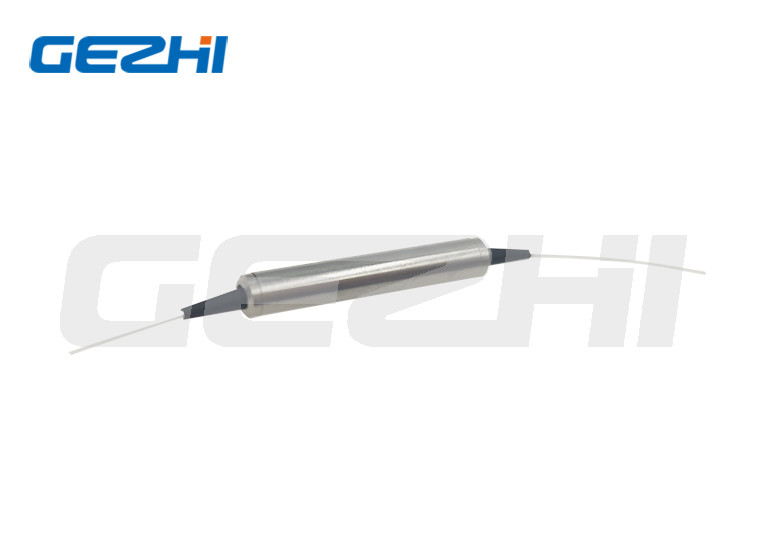

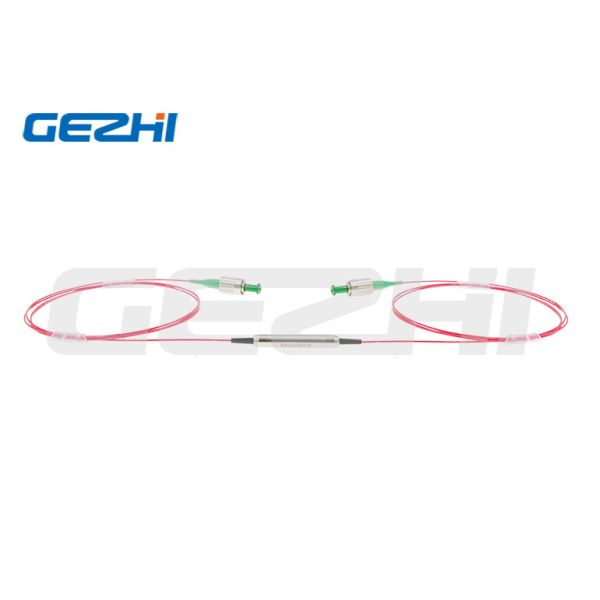

High Isolation 1064nm In Line Fiber Optic Polarizer Polarization Maintaining Components High Isolation 1064nm In Line Fiber Optic Polarizer Polarization Maintaining Components
Features Applications
Low Insertion Loss Communication Systems
High Return Loss Test Instrument
High Extinction Ratio Fiber Sensor
High Reliability Research
High Stability

Specifications

Center Wavelength nm

1064
Operating Wavelength Range nm

±30
Typ. Insertion Loss at 23℃ dB

0.4
Max. Insertion Loss at 23℃ dB

0.6
Min. Return Loss at 23℃ dB

50
Typ. Extinction Ratio at 23℃ dB

30
Min. Extinction Ratio at 23℃ dB

28
Fiber Type for Input & Output / SM→SM or SM→PM or PM→PM
Max. Optical Power (CW) mW 300
Package Dimension mm φ3.0x30 or φ3.2x30
Max. Tensile Load N 5
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.

Package Dimensions


High Isolation 1064nm In Line Fiber Optic Polarizer Polarization Maintaining Components
Ordering Information
MILP-1111-23-444-555-67-8-9A
1111 - Wavelength: 1064=1064nm, SSSS=Specified
2 - Fiber Type Option: 1=SM→SM, 2=SM→PM, 3=PM→PM
3 - Working Axis: F=Fast axis blocked, N=Non-PM
444 - Fiber Type for Input: 003=PM980, 004=Hi1060, SSS=Specified
555 - Fiber Type for Output: 003=PM980, 004=Hi1060, SSS=Specified
6 - Package Dimension: 0=φ3.0x30mm, 1=φ3.2x30mm
7 - Pigtail Type: 0=bare fiber, 1=900μm loose tube
8 - Fiber Length: 0.8=0.8m, 1.0=1m, S=Specified
9 - Connector Type for Input: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
A - Connector Type for Output: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
